Brand Name : AIDA
Model Number : WCCT20QZ
Certification : ISO,CE,EGS
Place of Origin : China
Model NO. : WCCT20QZ
Fuel : Electric
Load center : 500mm
Lift height : 3000~5000mm
Condition : New
Tyres : PU/Nylon
Wheelbase : 1360mm
Ground Clearance : 50mm
Steering : EPS
Reach Distance : 500/585mm
Width Over Forks : 200-680mm
Lowered Fork Height : 35/35mm
Extended Mast Height : 3760/3760mm
Fork Dimensions : 35/100/1070mm
Operating : Stand
Transport Package : 6PCS in One Pallet
Specification : 1750/1950/2190kg
Trademark : AIDA
Origin : China
HS Code : 84279000
Supply Ability : 200 set/month
After-sales Service : Support
Warranty : Support
Cab Location : Adjustable
Type : Stacker
Power : AC Motor
Load Capacity : 1T - 5T
Customization : Available | Customized Request
MOQ : 1 set
Price : Negotiable
Packaging Details : pallet packing for export
Delivery Time : 5-20 work days as per order volume
Payment Terms : T/T,L/C

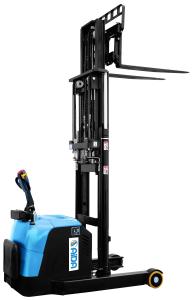

CE ISO Approved 2000kg Electric Reach Stacker with Reach Distance 500/585mm
1) Controller self-diagnosis system,make troubleshooting easier;
2) Battery cover is easytoopenconvenient to add distilled water or ellectrollyte of the battery;
3) Precision electronic imit switchescontrol of the maximum lifting heightto prevent damage to the motor;
4) AC drive system gives precise control,longer battery life;Aluminum cover,good heat dissipation for longer service life.
Model | WDGQ20QZ |
Load capacity | 2000kg |
Tyre size, front | φ250x75mm |
Tyre size, rear | Ф210x85mm |
Lift height | 2500-3000/3300-3500/4500/5000/5500/6200 |
Lowered height | 35mm |
Overall length | 2300(foldable)/2815mm |
Fork dimensions | 35/100/1070mm |
Distance between fork arms | 200-680mm |
Turning radius | 1615(foldable)/2025mm |
