Place of Origin : China
Brand Name : AIDA
Certification : ISO,CE,EGS
MOQ : 1 set
Price : Negotiable
Packaging Details : pallet packing for export
Delivery Time : 5-20 work days as per order volume
Payment Terms : T/T,L/C
Supply Ability : 200 set/month
Model NO. : WDG15QL
Fuel : Electric
Lift height : 1600-3500mm
Drive Motor : 0.75kw
Lift Motor : 2kw
Max Lift Height : 1600/2500/3000/3500mm
Specification : 1750*790mm
Load Capacity : 1500kg
Battery Capacity : 120Ah
Charging Time : 6-8 Hours
Fork Length : 1200mm
Fork Thickness : 50mm
Fork Width : 160mm
Lifting Capacity : 1000kg
Lifting Height : 3000mm
Motor Type : DC Motor
Running Time : 6-8 Hours
Size : 2000*1200*1800mm
Key Features:
Noise Reduction: Our stackers are equipped with advanced shock absorbers, effectively reducing noise for a quieter operation.
Extended Battery Life: Benefit from the low voltage protection feature, which safeguards the battery and ensures longer operational hours.
Unmatched Stability: The four-point low center of gravity design offers unparalleled stability, instilling confidence during handling tasks.
Efficient and Compact: Our stackers feature a compact design that incorporates regenerative braking for enhanced efficiency. Additionally, the streamlined structure facilitates easy maintenance, saving you time and effort.
Versatile Capacity: Lift and slide loads of up to 1.5 tons effortlessly, with mast options ranging from 1.6 to 3.5 meters to accommodate various lifting requirements.
Certified Quality: Rest assured knowing that our electric pallet stackers are CE and ISO certified, guaranteeing compliance with international standards.
Choose AIDA for top-notch electric pallet stackers that prioritize quality, reliability, and performance. Contact us today to discover the perfect solution for your lifting needs. Elevate your operations with AIDA's expertise.
Specification
Model | WDG10QL |
Load capacity | 1000kg |
Tyre size, front | φ80×70 |
Tyre size, rear | φ210×70 |
Lift height | 1600/2500/3000/3500mm |
Lowered height | 90mm |
Overall length | 1750mm |
Fork dimensions | 1070×142×60mm |
Distance between fork arms | 550/660mm |
Turning radius | 1437mm |
Groung clearance | 30mm |
Travel speed | 3.5/4 km/h |
Gradient,Laden/unladen | 3/10% |
Drive motor | 0.6kw |
Lift motor | 2kw |
Battery | lead-acid 24V 65Ah |

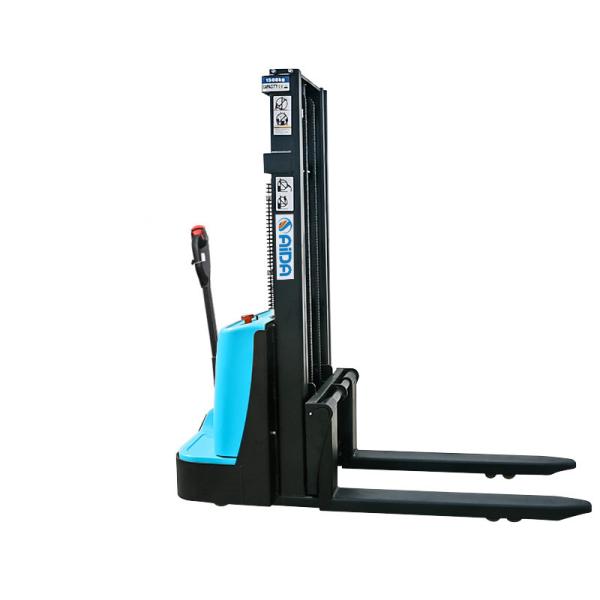

Electric Pedestrian Pallet Stacker truck 1.5tons lift height 3000mm Images |
